Deploying Microservice Demo App on vSphere Kubernetes Service

Introduction

Modern application platforms are rapidly shifting towards microservices, distributed environments, and Kubernetes-native architectures. VKS (vSphere Kubernetes Service) enables organizations to run Kubernetes workloads directly on VCF (VMware Cloud Foundation) using native capabilities like vSphere DRS, HA, vSAN storage, NSX and native cluster lifecycle management.

In this blog, we’ll walk through deploying the Microservices Demo Application, also known as Online Boutique, on a vSphere Kubernetes Services cluster.

Why Deploy Online Boutique on VKS?

Online Boutique is a cloud-native sample application that consists of 11 microservices, each written in different programming languages and communicating over gRPC and REST. It acts as a realistic reference workload to showcase:

  • Kubernetes-based microservices architecture
  • Horizontal scaling and resiliency
  • Observability and distributed tracing
  • Integration with service mesh and CI/CD pipelines

The application includes frontend UI, product service, cart service, checkoutervice, recommendation engine, payment gateway simulator, etc.

Below is the Bill of Materials for the environment for this deployment

  • VMware Cloud Foundation 9.0.1
  • Supervisor Version v1.31.6
  • vSphere Kubernetes Service 3.5.0+v1.34
  • vSphere Kubernetes Runtime 1.34.1
  • Bitnami Harbor

Connect to vSphere Supervisor

  • Connect to vSphere Supervisor using vcf cli.
root@image-builder:/home/pj# vcf context create supervisor-vpc --endpoint 172.16.40.6 --insecure-skip-tls-verify --username pj@workernode.lab
[i] Auth type vSphere SSO detected. Proceeding for authentication...
Provide Password:
Logged in successfully.
You have access to the following contexts:
   supervisor-vpc
   supervisor-vpc:andaman
   supervisor-vpc:svc-cci-ns-domain-c10
   supervisor-vpc:svc-tkg-domain-c10
   supervisor-vpc:svc-velero-domain-c10
If the namespace context you wish to use is not in this list, you may need to
refresh the context again, or contact your cluster administrator.
To change context, use `vcf context use <context_name>`
[ok] successfully created context: supervisor-vpc
[ok] successfully created context: supervisor-vpc:svc-velero-domain-c10
[ok] successfully created context: supervisor-vpc:svc-cci-ns-domain-c10
[ok] successfully created context: supervisor-vpc:andaman
[ok] successfully created context: supervisor-vpc:svc-tkg-domain-c10
root@image-builder:/home/pj# vcf context use supervisor-vpc:andaman
[ok] Token is still active. Skipped the token refresh for context "supervisor-vpc:andaman"
[i] Successfully activated context 'supervisor-vpc:andaman' (Type: kubernetes)
[i] Fetching recommended plugins for active context 'supervisor-vpc:andaman'...
[ok] All recommended plugins are already installed and up-to-date.

This environment uses an external Harbor Registry so we have to to establish trust with the registry to pull images for deployment.

Create Registry Secret

  • Retrieve Certificate for the registry and encode the certificate content with double-base64.
echo | openssl s_client -connect bitnami.workernode.lab:443 | sed -ne '/-BEGIN CERTIFICATE-/,/-END CERTIFICATE-/p' > certificate.crt
base64 -w 0 certificate.crt | base64 -w 0
  • Create a secret in vSphere Namespace for this registry. The yaml used to create the secret is also shown below.
root@image-builder:/home/pj# kubectl apply -f additional-ca-1.yaml
secret/demo-cluster-user-trusted-ca-secret created
root@image-builder:/home/pj# kubectl get secret -n andaman
NAME                                  TYPE     DATA   AGE
demo-cluster-user-trusted-ca-secret   Opaque   1      8s
root@image-builder:/home/pj# kubectl apply -f demo-cluster-deployment.yaml
cluster.cluster.x-k8s.io/demo-cluster created
root@image-builder:/home/pj# cat additional-ca-1.yaml
apiVersion: v1
data:
 additional-ca-1: TFMwdExTMUNSVWRKVGlCRFJWSlVTVVpKUTBGVVJTMHRMUzB0Q2sxSlNVZDNSRU5EUWt0cFowRjNTVUpCWjBsVVVGRkJRVUZDVVN0NWVXUXJibGh4UVd0blFVRkJRVUZCUmtSQlRrSm5hM0ZvYTJsSE9YY3dRa0ZSYzBZS1FVUkNUazFTVFhkRlVWbExRMXBKYldsYVVIbE1SMUZDUjFKWlJHSkhSbWxOVW05M1IwRlpTME5hU1cxcFdsQjVURWRSUWtkU1dVdGtNamw1WVRKV2VRcGliVGxyV2xSRllVMUNaMGRCTVZWRlFYaE5VbGxYVVhWa01qbDVZVEpXZVdKdE9XdGFVelZ6V1ZkSmQwaG9ZMDVOYWxWNFRWUkJlazFFWXpGTlZFMTNDbGRvWTA1TmFtTjRUVlJCZWsxRVl6Rk5WRTEzVjJwQ05FMVJjM2REVVZsRVZsRlJSMFYzU2twVWFrVlRUVUpCUjBFeFZVVkRRazFLVXpKR2VXSnRSakFLV1ZkMGFFMVNTWGRGUVZsRVZsRlJTRVYzYkVOYVZ6VnVXVmQ0TVdOdVZYaEZla0ZTUW1kT1ZrSkJiMVJEYkdSMlkyMTBiR050TlhaYVIxVjRRM3BCU2dwQ1owNVdRa0Z6VkVGcmJGVk5VamgzU0ZGWlJGWlJVVVJGZUZwcFlWaFNkVmxYTVhCTWJtUjJZMjEwYkdOdE5YWmFSMVYxWWtkR2FVMUpTVUpKYWtGT0NrSm5hM0ZvYTJsSE9YY3dRa0ZSUlVaQlFVOURRVkU0UVUxSlNVSkRaMHREUVZGRlFUUm1hbUpOWXprNVJsazVVWFp0Y0c1RGFVSktNbW81WVVoQk5Tc0tlRkl6T0dSSldFTlNSVkZuVm01bmEzTnlhamx4VXpSNGMyVnljRGRZTDJ3MFN6QkpOMWRSU2xack5GQklhbmxvWkU1eFFYZzNRekJ3UW1sTFZYcFlXQXBQTDJReldERmxTVmhwZVZCb2JrWXJTMlptT1ROSFltcHlWMnhrWmt4RlJ6SlZNRFpxWmt4bFYyWTBObGg2U1ZkeFdXVjNhVEEwV2pZeFRHTjFLMHcwQ2xCVk1qVlVSa0YxZW5GTFpVcElka3N2U0Rka1dqaEZhVWMzTDJkWmVHNTZkWFJsY0ZBNU0xWkhTMHhJZFcxVlIyNDNjVVIxVlc0cllVRmlVVk5HYzBvS1dqRnJXVzVrSzNwdldEQmlOVllyVTJSdE5VTndkMEpOWld0elFrMTFiR3g1Y0hsRVdGZ3lUR2RDYjNWU2JrMU5jR1o2VFVkS09GZEVZalZ0YVRGTVNBcDViM1E0ZFVoWFVGSjZaMng0TlhRMFlqbE5WamN4TVV4d1NVUmlkQzl4YnlzNVpXdHRZME5FZFVVdk5XY3ZWSFl6Vlhob2QxRnpkV3BSU1VSQlVVRkNDbTgwU1VOaVJFTkRRVzFuZDAxQldVUldVakJTUWtOcmQwbzBZMFZ5UWtFd1IwbEpWMWx0YkRCaWJVWjBZVk0xTTJJelNuSmFXRXAxWWpKU2JFeHRlR2dLV1c5SlNGbHRiREJpYlVaMFlWUkJaRUpuVGxaSVVUUkZSbWRSVldkTU4zaDFRekF4Wm5OUWJVb3JNMnRZWkZoeWNubHBlbWR2UlhkSWQxbEVWbEl3YWdwQ1FtZDNSbTlCVldaVE5VSkZha1YzUlZGbGFHRnlMMWhsTTBOaGFFUlFNbkY1ZDNkbll6QkhRVEZWWkVoM1UwSjRWRU5DZDJwRFFuWTJRMEoyUzBOQ0NuVlpZVUowYlhocldWaEJOa3g1T0haUk1EUTVXVmRSZFdReU9YbGhNbFo1WW0wNWExcFROWE5aVjBselVUQTBPVmxYVVhOUk1EUTVVVEJTVVV4RlRrOEtVRlpDTVZsdGVIQlplVlY1VFVWMGJHVlRWWGxOUms1c1kyNWFjRmt5Vm5wTVJVNVBVRlpPYkdOdVduQlpNbFo2VEVWT1QxQlZUblppYlZwd1dqTldlUXBaV0ZKd1lqSTBjMUpGVFRsa01qbDVZVEpXZVdKdE9XdGFVM2hGVVhveGMxbFhTUzlaTWxaNVpFZHNiV0ZYVG1oa1IxWlRXbGhhZGxreVJqQmhWemwxQ2xSSGJIcGtSRGxwV1ZoT2JGQXlPV2xoYlZacVpFVk9jMWxZVG5wUVYwNVRWRVZTY0dNelVubGhWMG94WkVkc2RtSnNRblpoVnpVd1RVbElSMEpuWjNJS1FtZEZSa0pSWTBKQlVWTkNkVlJEUW5ScVEwSnpkMWxKUzNkWlFrSlJWVWhOUVV0SFoyRmFjMXBIUm5kUGFUaDJUREJPVDFCWFJtdE1ibVIyWTIxMGJBcGpiVFYyV2tkVmRXSkhSbWxNUlU1UFVGVkdTbEZUZUVSVWFqRlJaRmRLYzJGWFRXeE5ha0pNV2xocmJFMXFRbFJhV0VveVlWZE9iR041ZUVSVWFqRlVDbHBZU2pKaFYwNXNZM2w0UkZScU1VUmlNalZ0WVZka01XTnRSakJoVnpsMVRFVlNSRkJZWkhaamJYUnNZMjAxZGxwSFZYTlNSVTA1WWtkR2FWQXlUa0lLVVRKV2VXUkhiRzFoVjA1b1pFZFZMMWx0Um5wYVZEbDJXVzF3YkZrelVrUmlSMFo2WTNveGFscFlTakJoVjFwd1dUSkdNR0ZYT1hWUldGWXdZVWM1ZVFwaFdGSTFUVUYzUjBFeFZXUkZkMFZDTDNkUlEwMUJRWGRFWjFsRVZsSXdVRUZSU0M5Q1FWRkVRV2RZWjAxRU1FZERVM05IUVZGUlFtZHFZMVpDZDFGM0NrMURORWRLYVhOSFFWRlJRbWRxWTFaRFNVaE5Na2MyU0hvMFVucG5LekpXU1RoTFNrSnZWRFEzUkdWQ1psbE1hbko1ZFVNemNGVlFRV2RHYTBGblJVd0tUVUV3UjBOVGNVZFRTV0l6UkZGRlFrTjNWVUZCTkVsRFFWRkNNR1ZXY0haUmNGRjVOSE14VVVKNVZFMUNiM0ZLVDI1d2VsVm9WVEZvWm1GalFteHNhZ3BUVUdoVlJGQnZkWGcyVVdaRlZWQnRXRkp6WTFSS2RITnplV2RqVEU1TWNUSXJSRlpLTkUxS1pIQktXVEZxUkhGVlVtUlhjRWgwWjFSUVpVVmlZVWR1Q2tGcWRsSmlhV2hNS3poNlNGQndOelJ1VFhJMmFIVTVXVzVNV1dWSGMybzNhamxWVTBoM0t6Um5la3d6WlRGNU9XcHljazFrZVc0elIxcDZkMlF2TTNnS1ZYVmpSRzB3YlVSS2FXVm9URnBKU2xOSVdqYzJjamRQT0dsNlFtNUNUVFk1Tld0WWJqQXpaMXBoZUZoUlNHOUVTbkl4Y2paR1RIQjRUVXRyWVZJeldBcENOMjAyT1dzNVMyZEpTVzUwYjNaWWVVNXlORWhVWnpoSU5EUkdVa3A1UzBSdFdYUkpMemxrUWtoR0szbHVTM0JCWjB4eE5XeDFZVk55WW1JeE5HRnVDbTVWZDB0dFlYcE1PVTVaTTA1WlpuUTVTaXRGZFhZeWVFdE5kVkZwVlZWSllXaG9Ta2RETDBoNk56aFBaMDVzUzIxbWJrOTZURnBZV1V4b2VpdEhkVXdLZDBzdmVWTjBVVGR0Um1sU2VIQnpOMncxTnpWaFpDOW1abkYzY0RnMlFuQm5VMDlLYzI4MlJYRldVMmM0UVRkeU5VOXViMmhzWkdGNVowRndUMWN3U2dwRmVraGhabk0wT1V0dFFubHVhVE56UW0wMWVrVkJUazB4VkRSa2FGQTFMMGc1TDJSdVZHZ3dibTlCTUdoaFowVjFja05NUVhobFVUVkxUVTFRU0dOWkNsazNWVVUwY0ZOQmJ5OTBWWEJxV2pZeFUwSm1PRU5KYWxGS1dpdHJWRUUzZVhZM1VGbHlWemwyWVhCUFlsaHhSWGRLYkN0bFUzcEZPRXBQUkU4d1NrRUtkR2RyUjFKVFNIbGpSRlF3VGtGTWR6bE1UMjFCTVdzek4xWkhiRTAyTXpjNFdHbDJVWFZIYlVKeVJERnZVVWRTZG1aalpFZFplaXRRVFZCU2IwazRSUXBDV2sxSmRuVjVTRTlNYkdvMU1YVlBRMkkzTVhOaE9FcFFOMEp2VGt3dmJuQXhSa05CYm0xeGRHbzVXRzlRVG05bVVsTjBNVTV0VTNVMlIzZHZXREJvQ2k5emRWWnVVVDA5Q2kwdExTMHRSVTVFSUVORlVsUkpSa2xEUVZSRkxTMHRMUzBL
kind: Secret
metadata:
 name: demo-cluster-user-trusted-ca-secret
 namespace: andaman
type: Opaque

Deploy VKS Cluster

  • Create the VKS cluster by providing the secret in cluster yaml under additionalTrustedCAs section with secret & key name.
root@image-builder:/home/pj# kubectl apply -f demo-cluster-deployment.yaml
cluster.cluster.x-k8s.io/demo-cluster created
  • Below is the YAML file used to create the VKS cluster. The cluster has 1 Control Plane node with 2vCPU/4 GB RAM and 1 Worker Node with 4 vCPU and 16GB RAM.
apiVersion: cluster.x-k8s.io/v1beta2
kind: Cluster
metadata:
  name: demo-cluster
  namespace: andaman
spec:
  clusterNetwork:
    pods:
      cidrBlocks:
        - 192.168.156.0/20
    services:
      cidrBlocks:
        - 10.96.0.0/12
    serviceDomain: cluster.local
  topology:
    classRef:
      name: builtin-generic-v3.5.0
      namespace: vmware-system-vks-public
    version: v1.34.1+vmware.1-vkr.4
    variables:
      - name: vsphereOptions
        value:
          persistentVolumes:
           defaultStorageClass: vks-policy
      - name: kubernetes
        value:
          certificateRotation:
            enabled: true
            renewalDaysBeforeExpiry: 90
          security:
            podSecurityStandard:
              audit: restricted
              auditVersion: latest
              enforce: privileged
              enforceVersion: latest
              warn: privileged
              warnVersion: latest
      - name: vmClass
        value: guaranteed-small
      - name: storageClass
        value: vks-policy
      - name: osConfiguration
        value:
          trust:
           additionalTrustedCAs:
             - caCert:
                 secretRef:
                   key: "additional-ca-1"
                   name: "demo-cluster-user-trusted-ca-secret"
    controlPlane:
      replicas: 1
      metadata:
        annotations:
          run.tanzu.vmware.com/resolve-os-image: os-name=ubuntu, content-library=cl-cc9e521762925e682, os-version=24.04
    workers:
      machineDeployments:
        - class: node-pool
          name: demo-app-cluster-np-e93l
          replicas: 1
          metadata:
            annotations:
              run.tanzu.vmware.com/resolve-os-image: os-name=ubuntu, content-library=cl-cc9e521762925e682, os-version=24.04
          variables:
            overrides:
              - name: vmClass
                value: best-effort-large
              - name: volumes
                value:
                  - name: containerd-v
                    mountPath: /var/lib/containerd
                    storageClass: vks-policy
                    capacity: 20Gi
                  - name: kubelet-v
                    mountPath: /var/lib/kubelet
                    storageClass: vks-policy
                    capacity: 20Gi
  • Wait for the cluster creation to finish and verify the cluster status
root@image-builder:/home/pj# kubectl get clusters -A
NAMESPACE   NAME           CLUSTERCLASS             AVAILABLE   CP DESIRED   CP AVAILABLE   CP UP-TO-DATE   W DESIRED   W AVAILABLE   W UP-TO-DATE   PHASE         AGE   VERSION
andaman     demo-cluster   builtin-generic-v3.5.0   True        1            1              1               1           1             1              Provisioned   5m    v1.34.1+vmware.1
root@image-builder:/home/pj# kubectl describe  cluster demo-cluster
Name:         demo-cluster
Namespace:    andaman
Labels:       addon.addons.kubernetes.vmware.com/cluster-autoscaler=automatic
              cluster.x-k8s.io/cluster-name=demo-cluster
              run.tanzu.vmware.com/tkr=v1.34.1---vmware.1-vkr.4
              topology.cluster.x-k8s.io/owned=
Annotations:  run.tanzu.vmware.com/tkr-spec:
                H4sIAAAAAAAC/7xVwY6kNhC9z1eguUb22mBo4JpTFOUSRTlktYoKu7rHaWNbtmE0G+Xfo4FeYKaZ7dEclhvlV49XVa9MevLYY4L2Lsuy7KytarNfhw6DxYTxdzQIEacz8HrEELWzbX...
              tkg.tanzu.vmware.com/skip-tls-verify:
              tkg.tanzu.vmware.com/tkg-http-proxy:
              tkg.tanzu.vmware.com/tkg-https-proxy:
              tkg.tanzu.vmware.com/tkg-ip-family:
              tkg.tanzu.vmware.com/tkg-no-proxy:
              tkg.tanzu.vmware.com/tkg-proxy-ca-cert:
              tkg.tanzu.vmware.com/tkg-registry-additional-ca-cert:
                LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSUd3RENDQktpZ0F3SUJBZ0lUUFFBQUFCUSt5eWQrblhxQWtnQUFBQUFBRkRBTkJna3Foa2lHOXcwQkFRc0YKQURCTk1STXdFUV...
              tkg.tanzu.vmware.com/tkg-registry-additional-skip-tls-verify:
API Version:  cluster.x-k8s.io/v1beta2
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
  Control Plane:
    Available Replicas:   1
    Desired Replicas:     1
    Ready Replicas:       1
    Replicas:             1
    Up To Date Replicas:  1
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
  Workers:
    Available Replicas:   1
    Desired Replicas:     1
    Ready Replicas:       1
    Replicas:             1
    Up To Date Replicas:  1
Events:
  Type    Reason                   Age                    From                         Message
  ----    ------                   ----                   ----                         -------
  Normal  Pending                  4m56s                  cluster-controller           Cluster demo-cluster is Pending
  Normal  TopologyCreate           4m56s                  topology/cluster-controller  Created VSphereCluster "andaman/demo-cluster-kbfrm"
  Normal  TopologyCreate           4m56s                  topology/cluster-controller  Created VSphereMachineTemplate "andaman/demo-cluster-zrnlt"
  Normal  TopologyCreate           4m56s                  topology/cluster-controller  Created KubeadmControlPlane "andaman/demo-cluster-kfkrt"
  Normal  TopologyUpdate           4m56s                  topology/cluster-controller  Updated Cluster "andaman/demo-cluster"
  Normal  TopologyCreate           4m56s                  topology/cluster-controller  Created VSphereMachineTemplate "andaman/demo-cluster-demo-app-cluster-np-e93l-ffl2f"
  Normal  TopologyCreate           4m56s                  topology/cluster-controller  Created KubeadmConfigTemplate "andaman/demo-cluster-demo-app-cluster-np-e93l-zxpm8"
  Normal  Provisioning             4m56s (x2 over 4m56s)  cluster-controller           Cluster demo-cluster is Provisioning
  Normal  TopologyCreate           4m56s                  topology/cluster-controller  Created MachineDeployment "andaman/demo-cluster-demo-app-cluster-np-e93l-5s46g"
  Normal  InfrastructureReady      4m54s (x2 over 4m54s)  cluster-controller           Cluster demo-cluster InfrastructureProvisioned is now True
  Normal  Provisioned              4m54s (x2 over 4m54s)  cluster-controller           Cluster demo-cluster is Provisioned
  Normal  ControlPlaneInitialized  2m4s (x2 over 2m4s)    cluster-controller           Cluster demo-cluster ControlPlaneInitialized is now True
  • Login to the VKS cluster and create a new namespace for the application deployment.
root@image-builder:/home/pj# vcf context create demo-cluster --endpoint 172.16.40.6 --insecure-skip-tls-verify --workload-cluster-name demo-cluster --workload-cluster-namespace andaman --username pj@workernode.lab
Provide Password:
[i] Logging in to Kubernetes cluster (demo-cluster) (andaman)
[i] Successfully logged in to Kubernetes cluster 172.16.40.7
You have access to the following contexts:
   demo-cluster
   demo-cluster:demo-cluster
If the namespace context you wish to use is not in this list, you may need to
refresh the context again, or contact your cluster administrator.
To change context, use `vcf context use <context_name>`
[ok] successfully created context: demo-cluster
[ok] successfully created context: demo-cluster:demo-cluster
root@image-builder:/home/pj# vcf context use demo-cluster:demo-cluster
\[ok] Token is still active. Skipped the token refresh for context "demo-cluster:demo-cluster"
[i] Successfully activated context 'demo-cluster:demo-cluster' (Type: kubernetes)
[i] Fetching recommended plugins for active context 'demo-cluster:demo-cluster'...
[ok] No recommended plugins found.
root@image-builder:/home/pj# kubectl get nodes -o wide
NAME                                                      STATUS   ROLES           AGE     VERSION            INTERNAL-IP   EXTERNAL-IP   OS-IMAGE             KERNEL-VERSION     CONTAINER-RUNTIME
demo-cluster-demo-app-cluster-np-e93l-5s46g-cnbd9-sxnl4   Ready    <none>          4m30s   v1.34.1+vmware.1   172.26.0.4    <none>        Ubuntu 24.04.3 LTS   6.8.0-86-generic   containerd://2.1.4+vmware.3-fips
demo-cluster-kfkrt-sv4r6                                  Ready    control-plane   6m27s   v1.34.1+vmware.1   172.26.0.3    <none>        Ubuntu 24.04.3 LTS   6.8.0-86-generic   containerd://2.1.4+vmware.3-fips
root@image-builder:/home/pj# kubectl create ns boutique-app
namespace/boutique-app created

Push Application Images to Harbor Registry

The first step would be to pull a

  • Pull all images from Docker
docker pull us-central1-docker.pkg.dev/google-samples/microservices-demo/emailservice:v0.10.3
docker pull us-central1-docker.pkg.dev/google-samples/microservices-demo/checkoutservice:v0.10.3
docker pull us-central1-docker.pkg.dev/google-samples/microservices-demo/recommendationservice:v0.10.3
docker pull us-central1-docker.pkg.dev/google-samples/microservices-demo/frontend:v0.10.3
docker pull us-central1-docker.pkg.dev/google-samples/microservices-demo/paymentservice:v0.10.3
docker pull us-central1-docker.pkg.dev/google-samples/microservices-demo/productcatalogservice:v0.10.3
docker pull us-central1-docker.pkg.dev/google-samples/microservices-demo/cartservice:v0.10.3
docker pull redis:alpine
docker pull busybox:latest
docker pull us-central1-docker.pkg.dev/google-samples/microservices-demo/loadgenerator:v0.10.3
docker pull us-central1-docker.pkg.dev/google-samples/microservices-demo/currencyservice:v0.10.3
docker pull us-central1-docker.pkg.dev/google-samples/microservices-demo/shippingservice:v0.10.3
docker pull us-central1-docker.pkg.dev/google-samples/microservices-demo/adservice:v0.10.3
  • Login to Harbor Registry to push the images
docker login bitnami.workernode.lab -u admin
  • Tag the images
docker tag 625114d0d854 bitnami.workernode.lab/boutique-app/emailservice:v0.10.3
docker tag 71e3f26473a1 bitnami.workernode.lab/boutique-app/checkoutservice:v0.10.3
docker tag e51b38483156 bitnami.workernode.lab/boutique-app/recommendationservice:v0.10.3
docker tag f9b55abdb0f4 bitnami.workernode.lab/boutique-app/frontend:v0.10.3
docker tag a175e010bace bitnami.workernode.lab/boutique-app/paymentservice:v0.10.3
docker tag c7293efb5071 bitnami.workernode.lab/boutique-app/productcatalogservice:v0.10.3
docker tag 74e28b2a2ffa bitnami.workernode.lab/boutique-app/cartservice:v0.10.3
docker tag 3bcc86ad8fe9 bitnami.workernode.lab/boutique-app/redis:alpine
docker tag 08ef35a1c3f0 bitnami.workernode.lab/boutique-app/busybox:latest
docker tag c9fdb64e5f98 bitnami.workernode.lab/boutique-app/loadgenerator:v0.10.3
docker tag f154fb453696 bitnami.workernode.lab/boutique-app/currencyservice:v0.10.3
docker tag d0d1ba60b940 bitnami.workernode.lab/boutique-app/shippingservice:v0.10.3
docker tag 7cddcf253d6d bitnami.workernode.lab/boutique-app/adservice:v0.10.3
  • Push the images to Harbor Registry
docker push bitnami.workernode.lab/boutique-app/emailservice:v0.10.3
docker push bitnami.workernode.lab/boutique-app/checkoutservice:v0.10.3
docker push bitnami.workernode.lab/boutique-app/recommendationservice:v0.10.3
docker push bitnami.workernode.lab/boutique-app/frontend:v0.10.3
docker push bitnami.workernode.lab/boutique-app/paymentservice:v0.10.3
docker push bitnami.workernode.lab/boutique-app/productcatalogservice:v0.10.3
docker push bitnami.workernode.lab/boutique-app/cartservice:v0.10.3
docker push bitnami.workernode.lab/boutique-app/redis:alpine
docker push bitnami.workernode.lab/boutique-app/busybox:latest
docker push bitnami.workernode.lab/boutique-app/loadgenerator:v0.10.3
docker push bitnami.workernode.lab/boutique-app/currencyservice:v0.10.3
docker push bitnami.workernode.lab/boutique-app/shippingservice:v0.10.3
docker push bitnami.workernode.lab/boutique-app/adservice:v0.10.3

Installing Contour Ingress Add-on

As the application would be exposed by Ingress we would be installing Contour on VKS cluster using VKS Add-On Management.

  • Switch to supervisor context and list the available repository for installing the add-ons.
root@image-builder:/home/pj# vcf context list
[i] Refreshing plugin inventory cache for "projects.packages.broadcom.com/vcf-cli/plugins/plugin-inventory:latest", this will take a few seconds.
  NAME                                  CURRENT  TYPE
  demo-cluster                          false    kubernetes
  demo-cluster:demo-cluster             true     kubernetes
  supervisor-vpc                        false    kubernetes
  supervisor-vpc:andaman                false    kubernetes
  supervisor-vpc:svc-cci-ns-domain-c10  false    kubernetes
  supervisor-vpc:svc-tkg-domain-c10     false    kubernetes
  supervisor-vpc:svc-velero-domain-c10  false    kubernetes
[i] Use '--wide' to view additional columns.
root@image-builder:/home/pj# vcf context use supervisor-vpc
[ok] Token is still active. Skipped the token refresh for context "supervisor-vpc"
[i] Successfully activated context 'supervisor-vpc' (Type: kubernetes)
[i] Fetching recommended plugins for active context 'supervisor-vpc'...
[ok] All recommended plugins are already installed and up-to-date.
root@image-builder:/home/pj# vcf addon repository-install list
  NAME                        NAMESPACE                 ADDONREPOSITORY                READY
  default-addon-repo-install  vmware-system-vks-public  default-addonrepository-3.5.0  True
  • List all available add-ons and versions for cert-manager & contour packages.
root@image-builder:/home/pj# vcf addon available list
  NAMESPACE                 ADDONNAME                    DESCRIPTION
  vmware-system-vks-public  ako                          Integrates VMware NSX Advanced Load Balancer with Kubernetes for L4-L7 services.
  vmware-system-vks-public  cert-manager                 Certificate management
  vmware-system-vks-public  cluster-autoscaler           Automatically scale Kubernetes cluster nodes
  vmware-system-vks-public  contour                      An ingress controller
  vmware-system-vks-public  default-addon-repo-install   Standard PackageRepository for addons to install on Kubernetes Clusters
  vmware-system-vks-public  external-dns                 This package provides DNS synchronization functionality.
  vmware-system-vks-public  fluent-bit                   Fluent Bit is a fast Log Processor and Forwarder
  vmware-system-vks-public  harbor                       OCI Registry
  vmware-system-vks-public  istio                        networking service mesh solution for containers
  vmware-system-vks-public  prometheus                   A time series database for your metrics
  vmware-system-vks-public  sriov-network-device-plugin  The SR-IOV Network Device Plugin is Kubernetes device plugin for discovering and
                                                         advertising SR-IOV virtual functions (VFs) available on a Kubernetes host
  vmware-system-vks-public  telegraf                     collect and report metrics
  vmware-system-vks-public  velero                       Velero is an open source tool to safely backup and restore, perform disaster
                                                         recovery, and migrate Kubernetes cluster resources and persistent volumes.
  vmware-system-vks-public  vks-static-resources         vks managed static resources
  vmware-system-vks-public  vsphere-pv-csi-webhook       vSphere paravirtual CSI provider webhook
  vmware-system-vks-public  windows-gmsa-webhook         Windows Group Managed Service Accounts (GMSA) Kubernetes Webhook
root@image-builder:/home/pj# vcf addon available list cert-manager
  NAMESPACE                 ADDONNAME     VERSION                ADDON-RELEASE-NAME                                        PACKAGE
  vmware-system-vks-public  cert-manager  1.18.2+vmware.2-vks.2  cert-manager.kubernetes.vmware.com.1.18.2-vmware.2-vks.2  cert-manager.kubernetes.vmware.com/1.18.2+vmware.2-vks.2
root@image-builder:/home/pj# vcf addon available list contour
  NAMESPACE                 ADDONNAME  VERSION                ADDON-RELEASE-NAME                                   PACKAGE
  vmware-system-vks-public  contour    1.33.0+vmware.1-vks.1  contour.kubernetes.vmware.com.1.33.0-vmware.1-vks.1  contour.kubernetes.vmware.com/1.33.0+vmware.1-vks.1
  • Switch to vSphere Namespace context . Install cert-manager package on the cluster as it’s a pre-requisiste for Contour . For this I have switched to vSphere Namespace where VKS Cluster is deployed. The package installation takes a couple of minutes and Ready state should be true on successful deployment for the package.
root@image-builder:/home/pj# vcf context use supervisor-vpc:andaman
[ok] Token is still active. Skipped the token refresh for context "supervisor-vpc:andaman"
[i] Successfully activated context 'supervisor-vpc:andaman' (Type: kubernetes)
[i] Fetching recommended plugins for active context 'supervisor-vpc:andaman'...
[ok] All recommended plugins are already installed and up-to-date.
root@image-builder:/home/pj# vcf cluster list -A
  NAME          NAMESPACE  STATUS   CONTROLPLANE  WORKERS  KUBERNETES        KUBERNETESRELEASE
  demo-cluster  andaman    running  1/1           1/1      v1.34.1+vmware.1  v1.34.1---vmware.1-vkr.4
root@image-builder:/home/pj# vcf addon install create cert-manager --cluster-name demo-cluster
Installing addon 'cert-manager' for cluster 'demo-cluster'. Are you sure? [y/N]: y
Addon 'cert-manager' is being installed in the cluster demo-cluster
root@image-builder:/home/pj# vcf addon install list --cluster-name demo-cluster
  ADDONNAME                   NAMESPACE  PAUSED  READY  DELETE/UPGRADE
  cert-manager                andaman    false   True   Allowed
  default-addon-repo-install  andaman    false   True   NotAllowed
  vks-static-resources        andaman    false   True   NotAllowed
  • Install Contour on VKS Cluster by generating the values.yaml for the package and editing the values.yaml by setting Envoy service to LoadBalancer. The package installation takes a couple of minutes and Ready state should be true on successful deployment for the package.
root@image-builder:/home/pj# vcf addon available-releases get contour.kubernetes.vmware.com.1.33.0-vmware.1-vks.1 -o contour.yaml
root@image-builder:/home/pj# cat contour.yaml
infrastructure_provider: vsphere
namespace: tanzu-system-ingress
contour:
  configFileContents: {}
  useProxyProtocol: false
  replicas: 2
  pspNames: "vmware-system-restricted"
  logLevel: info
envoy:
  service:
    type: LoadBalancer
    annotations: {}
    externalTrafficPolicy: Cluster
    disableWait: false
  hostPorts:
    enable: true
    http: 80
    https: 443
  hostNetwork: false
  terminationGracePeriodSeconds: 300
  logLevel: info
certificates:
  caDuration: 8760h
  caRenewBefore: 720h
  leafDuration: 720h
  leafRenewBefore: 360h
root@image-builder:/home/pj# vcf addon available list contour
  NAMESPACE                 ADDONNAME  VERSION                ADDON-RELEASE-NAME                                   PACKAGE
  vmware-system-vks-public  contour    1.33.0+vmware.1-vks.1  contour.kubernetes.vmware.com.1.33.0-vmware.1-vks.1  contour.kubernetes.vmware.com/1.33.0+vmware.1-vks.1
root@image-builder:/home/pj# vcf addon install create contour --cluster-name demo-cluster -v '1.33.0+vmware.1-vks.1' -f contour.yaml
Installing addon 'contour' for cluster 'demo-cluster'. Are you sure? [y/N]: y
Addon 'contour' is being installed in the cluster demo-cluster
root@image-builder:/home/pj# vcf addon install list --cluster-name demo-cluster
  ADDONNAME                   NAMESPACE  PAUSED  READY  DELETE/UPGRADE
  cert-manager                andaman    false   True   Allowed
  contour                     andaman    false   True   Allowed
  default-addon-repo-install  andaman    false   True   NotAllowed
  vks-static-resources        andaman    false   True   NotAllowed

Deployment of Application on VKS Cluster

  • Get the application manifest from Github and change the image path to the Harbor Registry where application images are uploaded. Additionally change the frontend type from LoadBalancer to ClusterIP as we would expose the application via Contour Ingress.
  • Deploy the application on VKS Cluster
root@image-builder:/home/pj# kubectl apply -f google-application.yaml
deployment.apps/emailservice created
service/emailservice created
serviceaccount/emailservice created
deployment.apps/checkoutservice created
service/checkoutservice created
serviceaccount/checkoutservice created
deployment.apps/recommendationservice created
service/recommendationservice created
serviceaccount/recommendationservice created
deployment.apps/frontend created
service/frontend created
service/frontend-external created
serviceaccount/frontend created
deployment.apps/paymentservice created
service/paymentservice created
serviceaccount/paymentservice created
deployment.apps/productcatalogservice created
service/productcatalogservice created
serviceaccount/productcatalogservice created
deployment.apps/cartservice created
service/cartservice created
serviceaccount/cartservice created
deployment.apps/redis-cart created
service/redis-cart created
deployment.apps/loadgenerator created
serviceaccount/loadgenerator created
deployment.apps/currencyservice created
service/currencyservice created
serviceaccount/currencyservice created
deployment.apps/shippingservice created
service/shippingservice created
serviceaccount/shippingservice created
deployment.apps/adservice created
service/adservice created
serviceaccount/adservice created
  • Verify Application Deployment
root@image-builder:/home/pj# kubectl get all -n boutique-app
NAME                                         READY   STATUS    RESTARTS   AGE
pod/adservice-fc9c6c5f9-t6f7q                1/1     Running   0          35s
pod/cartservice-5479d49b8b-bbpz4             1/1     Running   0          36s
pod/checkoutservice-6f7b85ff49-qcvgd         1/1     Running   0          37s
pod/currencyservice-6c9d744f9c-5h5qn         1/1     Running   0          36s
pod/emailservice-5d5c4f45df-f6wsc            1/1     Running   0          37s
pod/frontend-8574df5676-2dwd2                1/1     Running   0          36s
pod/loadgenerator-5b9659cfbd-scsp2           1/1     Running   0          36s
pod/paymentservice-d65f55669-rlmpw           1/1     Running   0          36s
pod/productcatalogservice-cc74b95bf-f6hlv    1/1     Running   0          36s
pod/recommendationservice-65c44c7895-btkmz   1/1     Running   0          37s
pod/redis-cart-c8ff86559-flcrw               1/1     Running   0          36s
pod/shippingservice-6db495bdcc-h5rrg         1/1     Running   0          35s
NAME                            TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)     AGE
service/adservice               ClusterIP   10.108.196.85    <none>        9555/TCP    36s
service/cartservice             ClusterIP   10.101.175.123   <none>        7070/TCP    36s
service/checkoutservice         ClusterIP   10.100.45.255    <none>        5050/TCP    37s
service/currencyservice         ClusterIP   10.100.134.108   <none>        7000/TCP    36s
service/emailservice            ClusterIP   10.107.118.214   <none>        5000/TCP    37s
service/frontend                ClusterIP   10.108.80.40     <none>        80/TCP      37s
service/frontend-external       ClusterIP   10.103.185.86    <none>        80/TCP      37s
service/paymentservice          ClusterIP   10.109.228.129   <none>        50051/TCP   36s
service/productcatalogservice   ClusterIP   10.108.31.42     <none>        3550/TCP    36s
service/recommendationservice   ClusterIP   10.102.193.242   <none>        8080/TCP    37s
service/redis-cart              ClusterIP   10.103.92.189    <none>        6379/TCP    36s
service/shippingservice         ClusterIP   10.104.37.96     <none>        50051/TCP   36s
NAME                                    READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/adservice               1/1     1            1           36s
deployment.apps/cartservice             1/1     1            1           36s
deployment.apps/checkoutservice         1/1     1            1           37s
deployment.apps/currencyservice         1/1     1            1           36s
deployment.apps/emailservice            1/1     1            1           37s
deployment.apps/frontend                1/1     1            1           37s
deployment.apps/loadgenerator           1/1     1            1           36s
deployment.apps/paymentservice          1/1     1            1           36s
deployment.apps/productcatalogservice   1/1     1            1           36s
deployment.apps/recommendationservice   1/1     1            1           37s
deployment.apps/redis-cart              1/1     1            1           36s
deployment.apps/shippingservice         1/1     1            1           36s
NAME                                               DESIRED   CURRENT   READY   AGE
replicaset.apps/adservice-fc9c6c5f9                1         1         1       35s
replicaset.apps/cartservice-5479d49b8b             1         1         1       36s
replicaset.apps/checkoutservice-6f7b85ff49         1         1         1       37s
replicaset.apps/currencyservice-6c9d744f9c         1         1         1       36s
replicaset.apps/emailservice-5d5c4f45df            1         1         1       37s
replicaset.apps/frontend-8574df5676                1         1         1       37s
replicaset.apps/loadgenerator-5b9659cfbd           1         1         1       36s
replicaset.apps/paymentservice-d65f55669           1         1         1       36s
replicaset.apps/productcatalogservice-cc74b95bf    1         1         1       36s
replicaset.apps/recommendationservice-65c44c7895   1         1         1       37s
replicaset.apps/redis-cart-c8ff86559               1         1         1       36s
replicaset.apps/shippingservice-6db495bdcc         1         1         1       36s

Configure Ingress

  • Create a Kubernetes TLS Secret in the same namespace as application which we would apply to Contour Ingress resource.

kubectl create secret tls boutique-app-tls --namespace boutique-app --key /home/pj/boutique-cert/boutique.key --cert /home/pj/boutique-cert/boutique.crt
  • To expose the frontend service using Ingress, create an ingress resource. Map it to the frontend service of the application. Use the TLS secret created above.
root@image-builder:/home/pj# cat ingress.yaml
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: vks-app-ingress
  namespace: boutique-app
  annotations:
    ingressClassName: contour
spec:
  tls:
  - hosts:
    - boutique.workernode.lab
    secretName: boutique-app-tls
  rules:
  - host: boutique.workernode.lab
    http:
      paths:
      - path: /
        pathType: Prefix
        backend:
          service:
            name: frontend
            port:
              number: 80
root@image-builder:/home/pj# kubectl apply -f ingress.yaml
ingress.networking.k8s.io/vks-app-ingress created
root@image-builder:/home/pj# kubectl get ingress -A
NAMESPACE      NAME              CLASS    HOSTS                     ADDRESS       PORTS     AGE
boutique-app   vks-app-ingress   <none>   boutique.workernode.lab   172.16.40.9   80, 443   5s

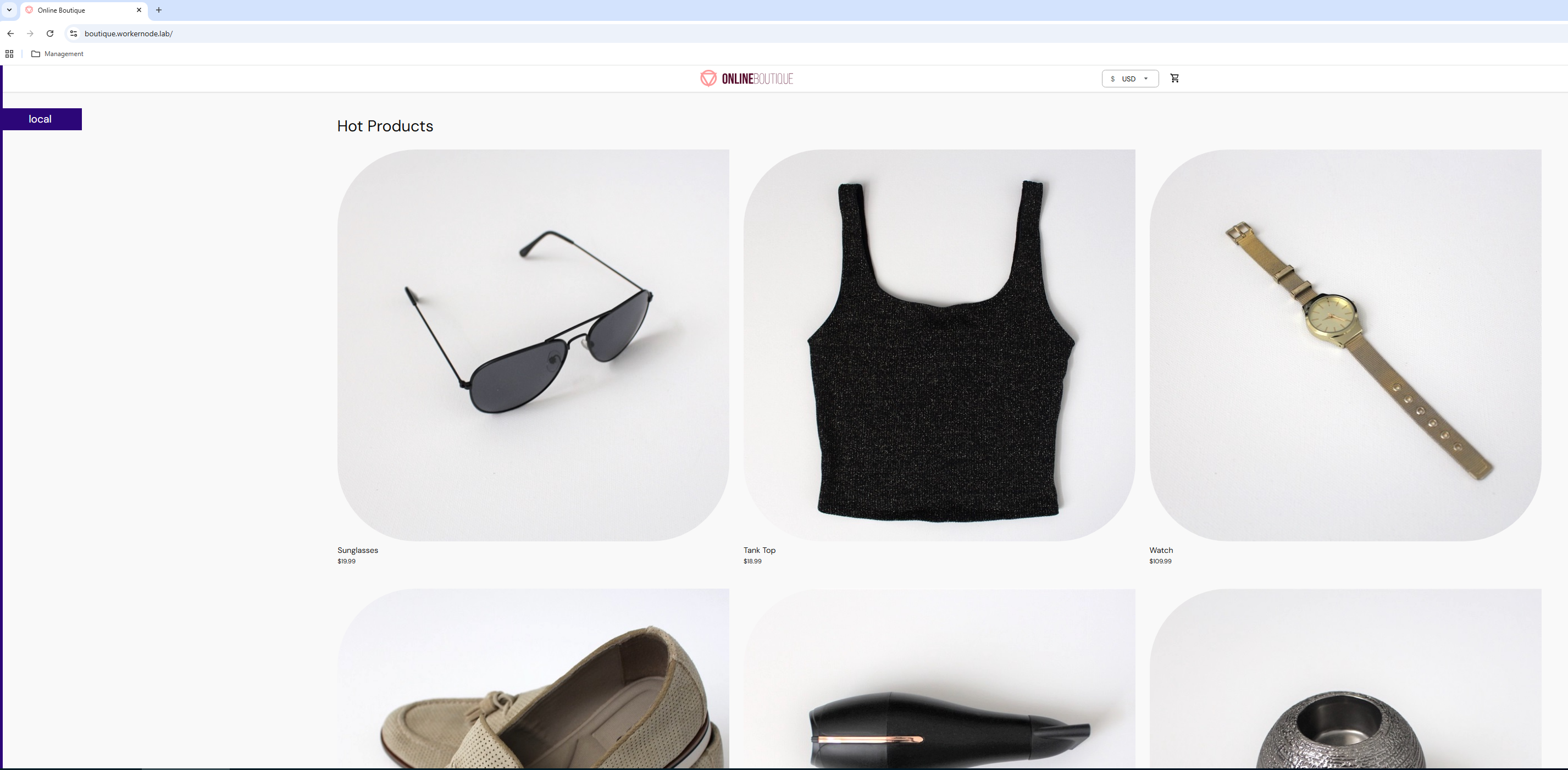

Finally, we have deployed the Demo Application a cloud-native application on vSphere Kubernetes Service, using VKS cluster provisioning, container registries, ingress setup, and secure TLS routing.

Conclusion

Deploying a microservices-based application on vSphere Kubernetes Service (VKS) highlights how modern cloud-native workloads can run seamlessly on VMware’s enterprise infrastructure. By using a Kubernetes cluster integrated with VMware Cloud Foundation, organizations can combine the agility of microservices with the reliability, scalability, and operational consistency of the vSphere platform.

In this blog, we walked through the complete deployment process—from preparing the VKS cluster and configuring access to a private Harbor registry, to deploying the Online Boutique microservices application and exposing it securely using Contour Ingress with TLS. The application itself consists of multiple loosely coupled services communicating through APIs, providing a realistic demonstration of how distributed applications operate in Kubernetes environments.

Disclaimer: All posts, contents and examples are for educational purposes in lab environments only and does not constitute professional advice. No warranty is implied or given. The user accepts that all information, contents, and opinions are my own. They do not reflect the opinions of my employe

Comments

Leave a comment
