Deploy Windows Node Pools in vSphere Kubernetes Service

Introduction

Today Enterprises have a hybrid workload mix – Linux based Cloud-native applications and Windows based .Net Framework or IIS-hosted applications. With vSphere Kubernetes Service you can provision Windows Node Pools in your vSphere Kubernetes Service (VKS) Clusters.

In this blog post I would cover

  • Deployment of VKS Cluster with Windows Node Pools
  • Deployment of ASP .Net Sample Application on VKS Cluster

Deployment of VKS Cluster with Windows Node Pools

Use vSphere Kubernetes Service Image Builder, earlier known as vSphere Tanzu Kubernetes Grid Image Builder for the creation of the Windows Image. I have blogged here on creation of Windows Images.

Prerequisites:

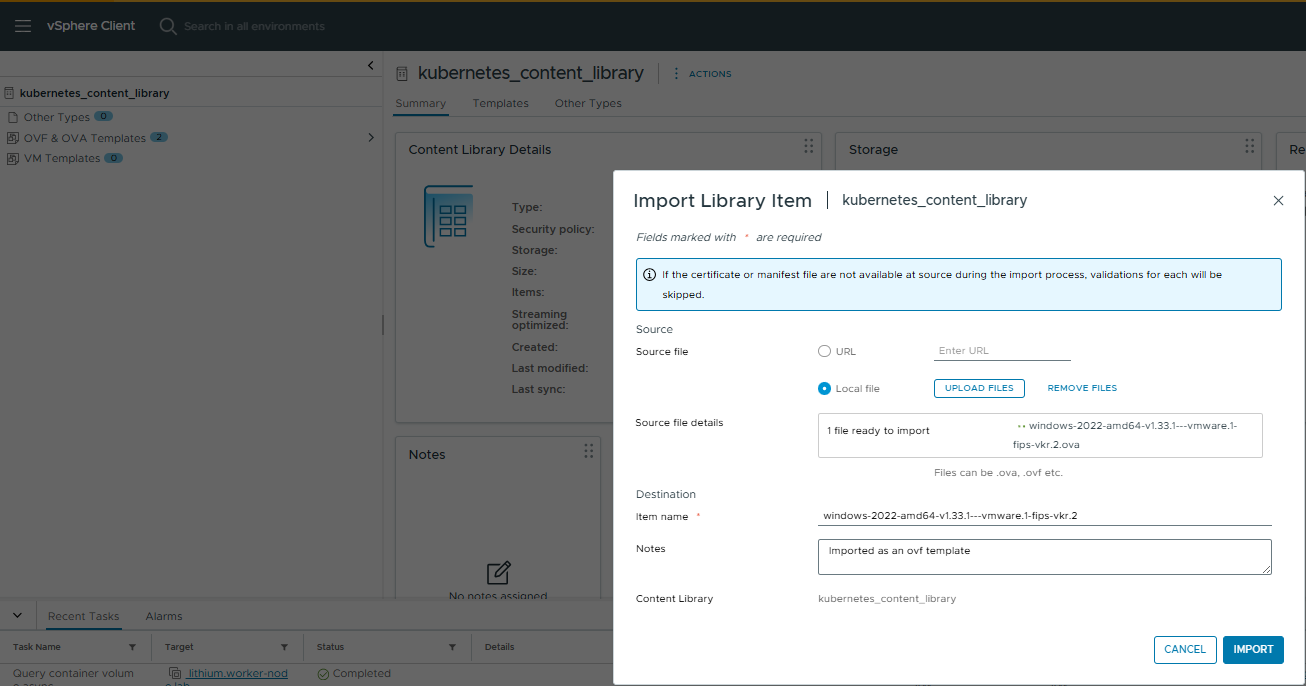

  • Create a Local Content Library on the vCenter Server and upload the Windows OVA to the content library. The Item Name has to match the ova name.
  • Download the Photon or Ubuntu OVA for your control plane nodes from Broadcom Subscribed Content Library. Then, upload it to the same content library.
  • Create a vSphere namespace in vCenter Server.
  • Give user-permissions, storage policy, vm class and attach the local content library to the vSphere namespace.

VKS Cluster Creation

  • Login to vSphere Supervisor
vcf context create --endpoint 172.16.22.10 --username administrator@vsphere.local --insecure-skip-tls-verify
  • Switch context to vSphere namespace . I would be using vSphere namespace – veeam for this VKS Cluster.
root@terraform-machine:~# vcf context list
  NAME                              CURRENT  TYPE
  supervisor                        false    kubernetes
  supervisor:svc-tkg-domain-c10     false    kubernetes
  supervisor:svc-velero-domain-c10  false    kubernetes
  supervisor:veeam                  false    kubernetes
root@terraform-machine:~# vcf context use supervisor:veeam
[ok] Token is still active. Skipped the token refresh for context "supervisor:veeam"
[i] Successfully activated context 'supervisor:veeam' (Type: kubernetes)
[i] Fetching recommended plugins for active context 'supervisor:veeam'...
[ok] All recommended plugins are already installed and up-to-date.
  • Verify the osimage and cluster virtualmachine images shows correctly on the vSphere namespace
root@terraform-machine:/home/pj/terraform/yaml# kubectl get osimage,cvmi
NAME                                                 K8S VERSION             OS NAME   OS VERSION   ARCH    TYPE   COMPATIBLE   CREATED
osimage.run.tanzu.vmware.com/vmi-8d9fbe3b896399d54   v1.33.1+vmware.1-fips   windows   2022         amd64   cvmi                3h21m
osimage.run.tanzu.vmware.com/vmi-c01f717d20e3689d9   v1.33.1+vmware.1-fips   ubuntu    22.04        amd64   cvmi                3h21m
NAME                                                                     DISPLAY NAME                                       TYPE   IMAGE VERSION                 OS NAME                      OS VERSION   HARDWARE VERSION
clustervirtualmachineimage.vmoperator.vmware.com/vmi-8d9fbe3b896399d54   windows-2022-amd64-v1.33.1---vmware.1-fips-vkr.2   OVF    v1.33.1+vmware.1-fips-vkr.2   windows2019srvNext_64Guest                18
clustervirtualmachineimage.vmoperator.vmware.com/vmi-c01f717d20e3689d9   ubuntu-2204-amd64-v1.33.1---vmware.1-fips-vkr.2    OVF    v1.33.1+vmware.1-fips-vkr.2   ubuntu64Guest
  • Verify VKS Cluster Yaml
root@terraform-machine:/home/pj/terraform/yaml# cat windows-cluster.yaml
apiVersion: cluster.x-k8s.io/v1beta1
kind: Cluster
metadata:
  name: windows-cluster-1
  namespace: veeam
spec:
  clusterNetwork:
    pods:
      cidrBlocks:
        - 192.168.156.0/20
    services:
      cidrBlocks:
        - 10.96.0.0/12
    serviceDomain: cluster.local
  topology:
    class: builtin-generic-v3.3.0
    version: v1.33.1+vmware.1-fips-vkr.2
    variables:
      - name: vsphereOptions
        value:
          persistentVolumes:
            defaultStorageClass: marvel-cl01-optimal-datastore-default-policy-raid1
      - name: kubernetes
        value:
          certificateRotation:
            enabled: true
            renewalDaysBeforeExpiry: 90
          security:
            podSecurityStandard:
              audit: restricted
              auditVersion: latest
              enforce: privileged
              enforceVersion: latest
              warn: privileged
              warnVersion: latest
      - name: osConfiguration
        value:
          ntp:
            servers:
              - 172.16.9.1
      - name: vmClass
        value: guaranteed-xsmall
      - name: storageClass
        value: marvel-cl01-optimal-datastore-default-policy-raid1
    controlPlane:
      replicas: 1
      metadata:
        annotations:
          run.tanzu.vmware.com/resolve-os-image: os-name=ubuntu
    workers:
      machineDeployments:
        - class: node-pool
          name: veeam-windows
          replicas: 1
          metadata:
            annotations:
              run.tanzu.vmware.com/resolve-os-image: os-name=windows
          variables:
            overrides:
              - name: volumes
                value:
                  - name: vol-5lo8
                    mountPath: C:\var\lib\kubelet
                    storageClass: marvel-cl01-optimal-datastore-default-policy-raid1
                    capacity: 50Gi
                  - name: vol-diqs
                    mountPath: C:\ProgramData\containerd
                    storageClass: marvel-cl01-optimal-datastore-default-policy-raid1
                    capacity: 50Gi
  • Deploy VKS Cluster . The above yaml deploys 1 Ubuntu control plane node and 1 Windows 2022 worker node.
root@terraform-machine:/home/pj/terraform/yaml# kubectl apply -f windows-cluster.yaml
cluster.cluster.x-k8s.io/windows-cluster-1 created
  • Wait for the VKS Cluster deployment to finish and the cluster to show in ready state
root@terraform-machine:/home/pj/terraform/yaml# kubectl get cluster -A
NAMESPACE   NAME                CLUSTERCLASS             PHASE         AGE    VERSION
veeam       windows-cluster-1   builtin-generic-v3.4.0   Provisioned   153m   v1.33.1+vmware.1-fips
  • Once the cluster is in ready state , login to the VKS Cluster
vcf context create --endpoint 172.16.22.10 --username administrator@vsphere.local --insecure-skip-tls-verify  --workload-cluster-name windows-cluster-1 --workload-cluster-namespace veeam
  • Switch to cluster context and verify the cluster nodes
root@terraform-machine:~# vcf context list
  NAME                                 CURRENT  TYPE
  windows-cluster-1                    false    kubernetes
  windows-cluster-1:windows-cluster-1  true     kubernetes
[i] Use '--wide' to view additional columns.
root@terraform-machinr:~# vcf context use windows-cluster-1:windows-cluster-1
[ok] Token is still active. Skipped the token refresh for context "windows-cluster-1:windows-cluster-1"
[i] Successfully activated context 'windows-cluster-1:windows-cluster-1' (Type: kubernetes)
[i] Fetching recommended plugins for active context 'windows-cluster-1:windows-cluster-1'...
[ok] No recommended plugins found.
root@terraform-machine:/home/pj/terraform/yaml# kubectl get nodes -o wide
NAME                                                STATUS   ROLES           AGE    VERSION                 INTERNAL-IP    EXTERNAL-IP   OS-IMAGE                         KERNEL-VERSION       CONTAINER-RUNTIME
windows-cluster-1-stmsd-h9pbn                       Ready    control-plane   157m   v1.33.1+vmware.1-fips   172.16.24.14   <none>        Ubuntu 22.04.5 LTS               5.15.0-141-generic   containerd://2.0.5+vmware.2-fips
windows-cluster-1-veeam-windows-r2kdg-6cc4v-6p4vr   Ready    <none>          153m   v1.33.1+vmware.1-fips   172.16.24.13   <none>        Windows Server 2022 Datacenter   10.0.20348.3328      containerd://2.0.5+vmware.2-fips
root@terraform-machine:/home/pj/terraform/yaml# kubectl get ns
NAME                                 STATUS   AGE
default                              Active   157m
kube-node-lease                      Active   157m
kube-public                          Active   157m
kube-system                          Active   157m
sample-application                   Active   83m
secretgen-controller                 Active   156m
tkg-system                           Active   156m
velero-vsphere-plugin-backupdriver   Active   157m
vmware-system-antrea                 Active   156m
vmware-system-auth                   Active   156m
vmware-system-cloud-provider         Active   157m
vmware-system-csi                    Active   157m
vmware-system-tkg                    Active   157m

At this stage our cluster is ready for application deployment.

Deployment of a .Net Sample Application on VKS Cluster

I created a namespace sample-deployment for deployment of a sample ASP .Net Application on VKS cluster using the below yaml.

I am using nodeselectors to ensure the pods are scheduled on Windows Nodes only.

root@terraform-machine:/home/pj/yaml# kubectl create ns sample-application
root@terraform-machine:~# kubectl get ns sample-application
NAME                 STATUS   AGE
sample-application   Active   91m
root@terraform-machine:/home/pj/yaml# cat windows-sample-application.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: sample
  namespace: sample-application
  labels:
    app: sample
spec:
  replicas: 1
  template:
    metadata:
      name: sample
      labels:
        app: sample
    spec:
      nodeSelector:
        kubernetes.io/os: windows
      tolerations:
      - key: "os"
        operator: "Equal"
        value: "windows"
        effect: "NoSchedule"
      containers:
      - name: sample
        image: mcr.microsoft.com/dotnet/framework/samples:aspnetapp
        resources:
          limits:
            cpu: 1
            memory: 800M
          requests:
            cpu: .1
            memory: 300M
        ports:
          - containerPort: 80
  selector:
    matchLabels:
      app: sample
---
apiVersion: v1
kind: Service
metadata:
  name: sample
  namespace: sample-application
spec:
  type: LoadBalancer
  ports:
  - protocol: TCP
    port: 80
  selector:
    app: sample

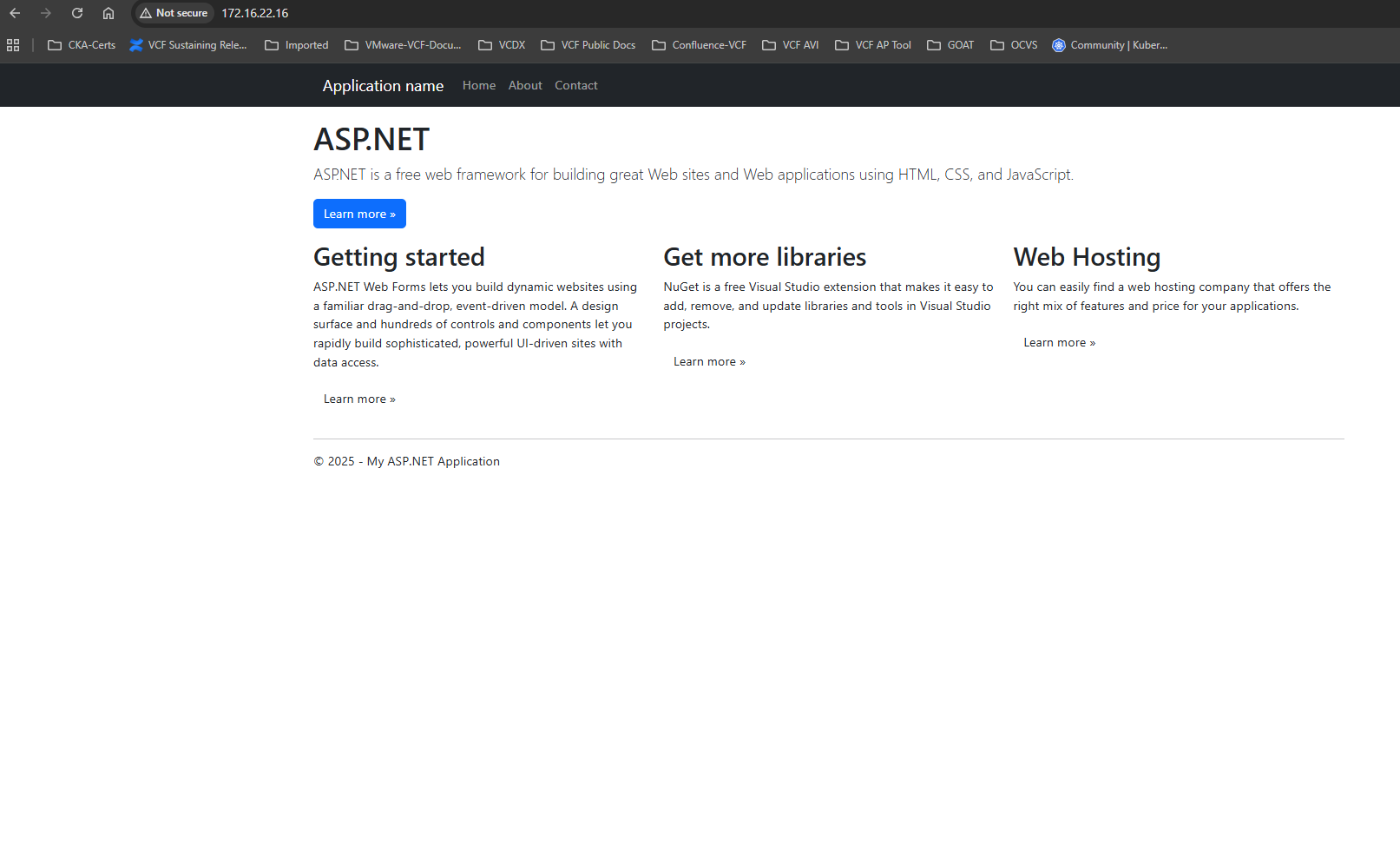

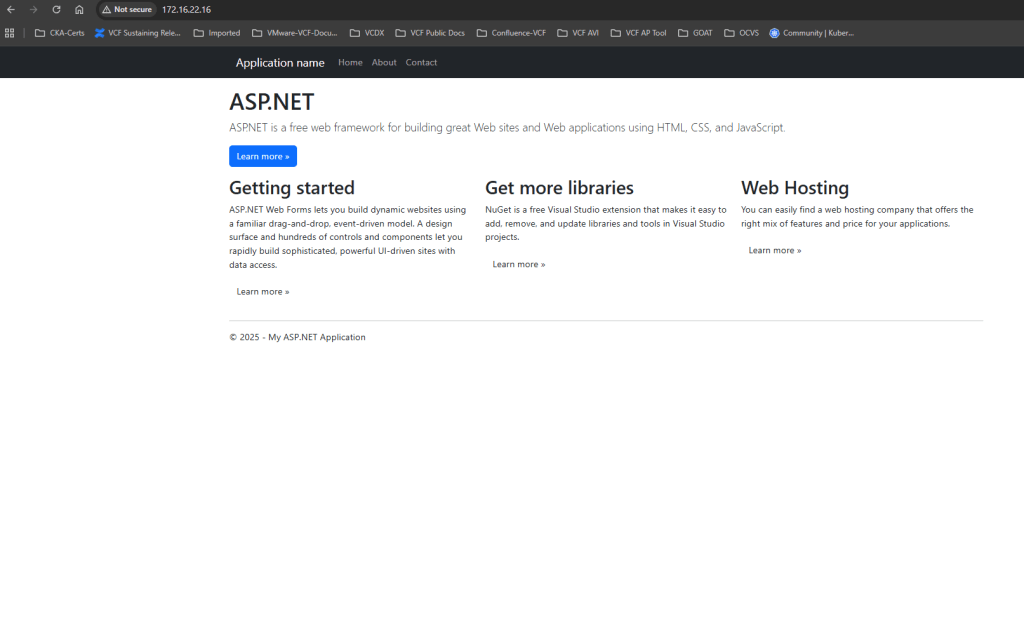

  • Apply the yaml file for this deployment which would expose the service as load-balancer.
root@terraform-machine:/home/pj/yaml# kubectl apply -f /home/pj/yaml/windows-sample-application.yaml
deployment.apps/sample created
service/sample created
  • Verify pods for the deployment . The image can take some time to pull from the public registry.
root@terraform-machine:~# kubectl get pods -A
NAMESPACE                      NAME                                                    READY   STATUS              RESTARTS      AGE
kube-system                    antrea-agent-windows-wfnbl                              2/2     Running             0             69m
kube-system                    antrea-agent-zr5x9                                      2/2     Running             0             72m
kube-system                    antrea-controller-6f656ffff5-g2k4t                      1/1     Running             0             72m
kube-system                    coredns-79dff89d76-7f6r2                                1/1     Running             0             71m
kube-system                    coredns-79dff89d76-d9q46                                1/1     Running             0             73m
kube-system                    csi-proxy-4npph                                         1/1     Running             0             69m
kube-system                    etcd-windows-cluster-1-stmsd-h9pbn                      1/1     Running             0             73m
kube-system                    kube-apiserver-windows-cluster-1-stmsd-h9pbn            1/1     Running             0             73m
kube-system                    kube-controller-manager-windows-cluster-1-stmsd-h9pbn   1/1     Running             0             73m
kube-system                    kube-proxy-sd4gb                                        1/1     Running             0             73m
kube-system                    kube-scheduler-windows-cluster-1-stmsd-h9pbn            1/1     Running             0             73m
kube-system                    metrics-server-7c5b57844-22474                          1/1     Running             0             72m
kube-system                    snapshot-controller-7869cd78db-cfk8d                    1/1     Running             0             72m
sample-application             sample-54fccbcb65-xd99m                                 0/1     ContainerCreating   0             2s
secretgen-controller           secretgen-controller-699786b9bd-52dds                   1/1     Running             0             72m
tkg-system                     kapp-controller-65d5b74f8c-qb76b                        2/2     Running             0             72m
vmware-system-antrea           antrea-pre-upgrade-job-hv8r5                            0/1     Completed           0             72m
vmware-system-auth             guest-cluster-auth-svc-svbcj                            1/1     Running             0             72m
vmware-system-cloud-provider   guest-cluster-cloud-provider-955cdd46-qflxz             1/1     Running             0             72m
vmware-system-csi              vsphere-csi-controller-dc879dbb-2pxdk                   7/7     Running             0             72m
vmware-system-csi              vsphere-csi-node-4hpxk                                  3/3     Running             3 (71m ago)   72m
vmware-system-csi              vsphere-csi-node-windows-rw8w8                          3/3     Running             3 (68m ago)   69m
root@terraform-machine:~# kubectl describe pod sample-54fccbcb65-xd99m -n sample-application
Name:             sample-54fccbcb65-xd99m
Namespace:        sample-application
Priority:         0
Service Account:  default
Node:             windows-cluster-1-veeam-windows-r2kdg-6cc4v-6p4vr/172.16.24.13
Start Time:       Sat, 20 Sep 2025 19:31:35 +0000
Labels:           app=sample
                  pod-template-hash=54fccbcb65
Annotations:      <none>
Status:           Pending
IP:
IPs:              <none>
Controlled By:    ReplicaSet/sample-54fccbcb65
Containers:
  sample:
    Container ID:
    Image:          mcr.microsoft.com/dotnet/framework/samples:aspnetapp
    Image ID:
    Port:           80/TCP
    Host Port:      0/TCP
    State:          Waiting
      Reason:       ContainerCreating
    Ready:          False
    Restart Count:  0
    Limits:
      cpu:     1
      memory:  800M
    Requests:
      cpu:        100m
      memory:     300M
    Environment:  <none>
    Mounts:
      /var/run/secrets/kubernetes.io/serviceaccount from kube-api-access-d5t5r (ro)
Conditions:
  Type                        Status
  PodReadyToStartContainers   False
  Initialized                 True
  Ready                       False
  ContainersReady             False
  PodScheduled                True
Volumes:
  kube-api-access-d5t5r:
    Type:                    Projected (a volume that contains injected data from multiple sources)
    TokenExpirationSeconds:  3607
    ConfigMapName:           kube-root-ca.crt
    Optional:                false
    DownwardAPI:             true
QoS Class:                   Burstable
Node-Selectors:              kubernetes.io/os=windows
Tolerations:                 node.kubernetes.io/not-ready:NoExecute op=Exists for 300s
                             node.kubernetes.io/unreachable:NoExecute op=Exists for 300s
                             os=windows:NoSchedule
Events:
  Type    Reason        Age   From                   Message
  ----    ------        ----  ----                   -------
  Normal  Scheduled     14s   default-scheduler      Successfully assigned sample-application/sample-54fccbcb65-xd99m to windows-cluster-1-veeam-windows-r2kdg-6cc4v-6p4vr
  Normal  NetworkReady  13s   AntreaPodConfigurator  Installed Pod network forwarding rules
  Normal  Pulling       13s   kubelet                Pulling image "mcr.microsoft.com/dotnet/framework/samples:aspnetapp"
  • Wait for some time for the pods to get in ready state . Verify the External LB IP for the application that we just deployed.
root@terraform-machine:~# kubectl get svc -n sample-application
NAME     TYPE           CLUSTER-IP     EXTERNAL-IP    PORT(S)        AGE
sample   LoadBalancer   10.97.115.73   172.16.22.16   80:31073/TCP   99m

Open a web browser and access the application. using the LB IP.

You should see the below page on successful deployment.

Conclusion

Deploying Windows node pools in vSphere Kubernetes Service (VKS) enables organizations to run both Linux- and Windows-based workloads on the same Kubernetes platform. This capability is especially valuable for enterprises that rely on Windows-based applications such as ASP.NET or legacy .NET Framework workloads while still adopting modern containerized architectures.

In this blog, we walked through the complete workflow—from preparing the required Windows image and publishing it to a vCenter Content Library, to deploying a VKS cluster with both Linux control plane nodes and Windows worker nodes. We also demonstrated how to schedule workloads specifically on Windows nodes using Kubernetes selectors and successfully deployed a sample ASP.NET application to validate the setup.

By integrating Windows node pools into VKS clusters, platform teams can modernize traditional Windows applications without requiring a full rewrite to Linux-based containers. This approach allows organizations to adopt Kubernetes while maintaining compatibility with existing enterprise workloads. With the cluster successfully deployed and validated, teams can now extend the platform to run additional Windows containerized services, microservices, and hybrid workloads on their vSphere-based Kubernetes infrastructure.

Disclaimer: All posts, contents and examples are for educational purposes in lab environments only and does not constitute professional advice. No warranty is implied or given. The user accepts that all information, contents, and opinions are my own. They do not reflect the opinions of my employer.

Comments

Leave a comment
